Fired Heater Modular Construction

Modular Fired Heaters

Esteem is one of the pioneers for the supply of modular Fired Heaters. Where required, we incorporate modularisation into each phase of the project from design to erection. Our design department is well conversant with modular design requirements. We have a fully equipped workshop with facilities to provide refractory lined & dried-out complete heater modules. Keeping in view transportation limitations, modular construction can be executed to any level, even to complete heaters, with platforms, burners, piping, duct work, and instrumentation installed.

Modular construction can cut down cost between 05% to 20% and shorten the construction period substantially. A plant can be brought online many months earlier than a conventionally built plant project.

Naphtha Cracking Furnaces by Esteem

Modularization approaches

Radiant  Type Horizontal Vertical Arbor Vertical Cylindrical

Delayed Coker
EDC Cracking
Hydrotreater Charge

Steam reforming
Ethylene Cracking
Catalytic Reforming

Hot Oil
Most services…

For wall mounted configuration, entire Radiant can be sent as a single module. Alternatively, coils can be transported in hairpins
Entire Radiant can be dispatched in refractory lined condition or in panels. Coils can be dispatched in pre-fabricated bundles ready for field installation
Coils can be supplied in arbors welded to manifolds for shipment and quick installation
These are well suited for modularization. Can be dispatched as complete radiant, or petals of shell and coil segments

Key Advantages

  • Better quality due to controlled shop environment

  • Reduced site activities

  • Cost/ time advantages

Considerations in design

  • Structural integrity of modules

  • Design for ease of transportation

  • Design for ease of erection

  • Design for easy interface between parts/ modules

  • Ensuring completeness of module in all respects to reduce site activities

Information required for Module Designing

  • Length, width and height limitations

  • Route traffic restrictions

  • Offloading & erection facilities at site

  • Availability of module storage area at site

Many modularization configurations are possible. Contact us to discuss how your next heater or convection section can be supplied in modular form.

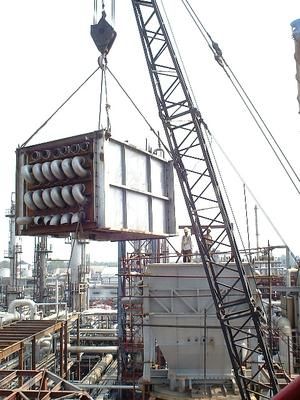

Fired Heater Convection Module Erection by Esteem

We have the expertise.

Contact us to find how a modular approach can save time and money in your next project!
